Web Application Firewall

The Firewall page#

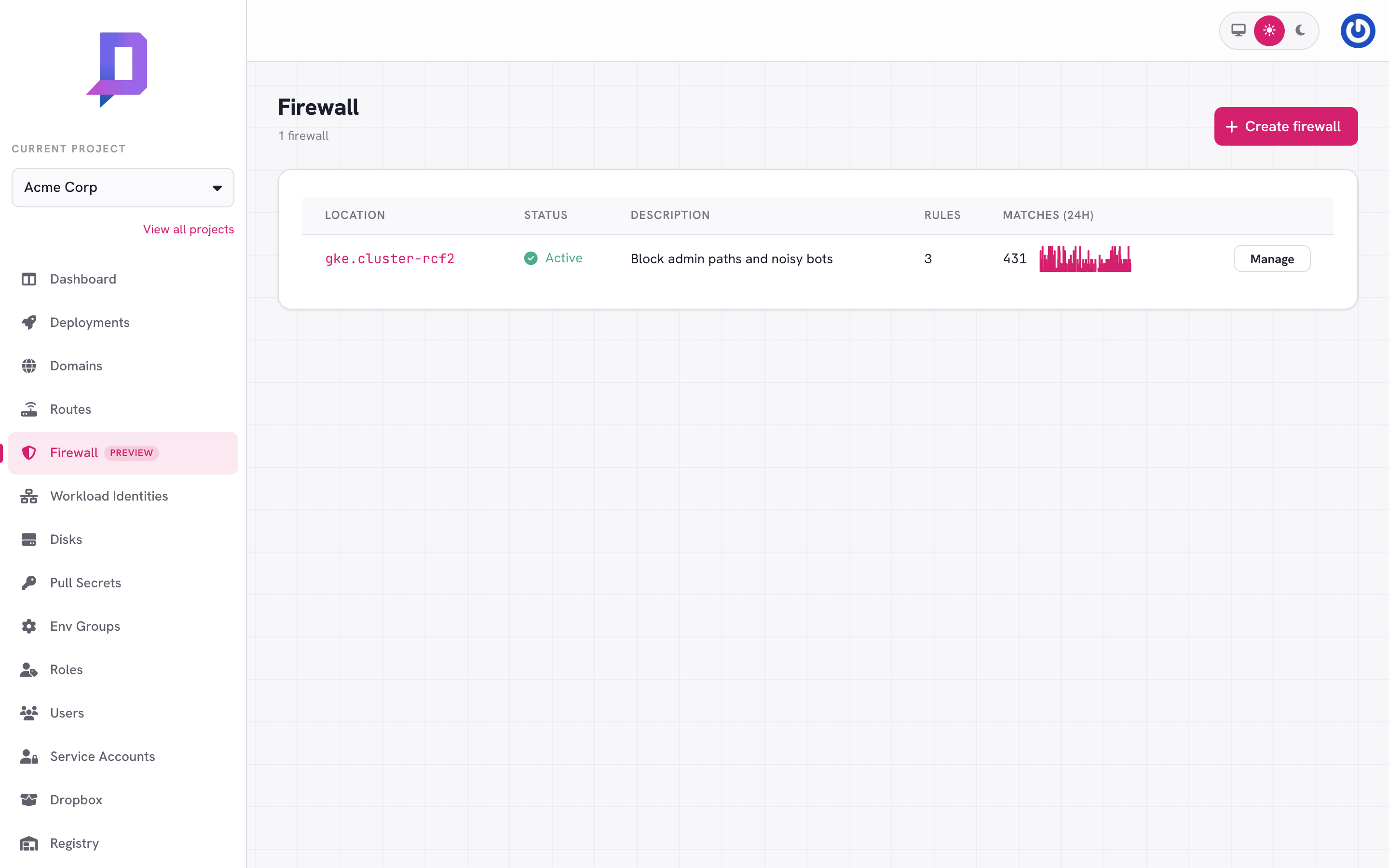

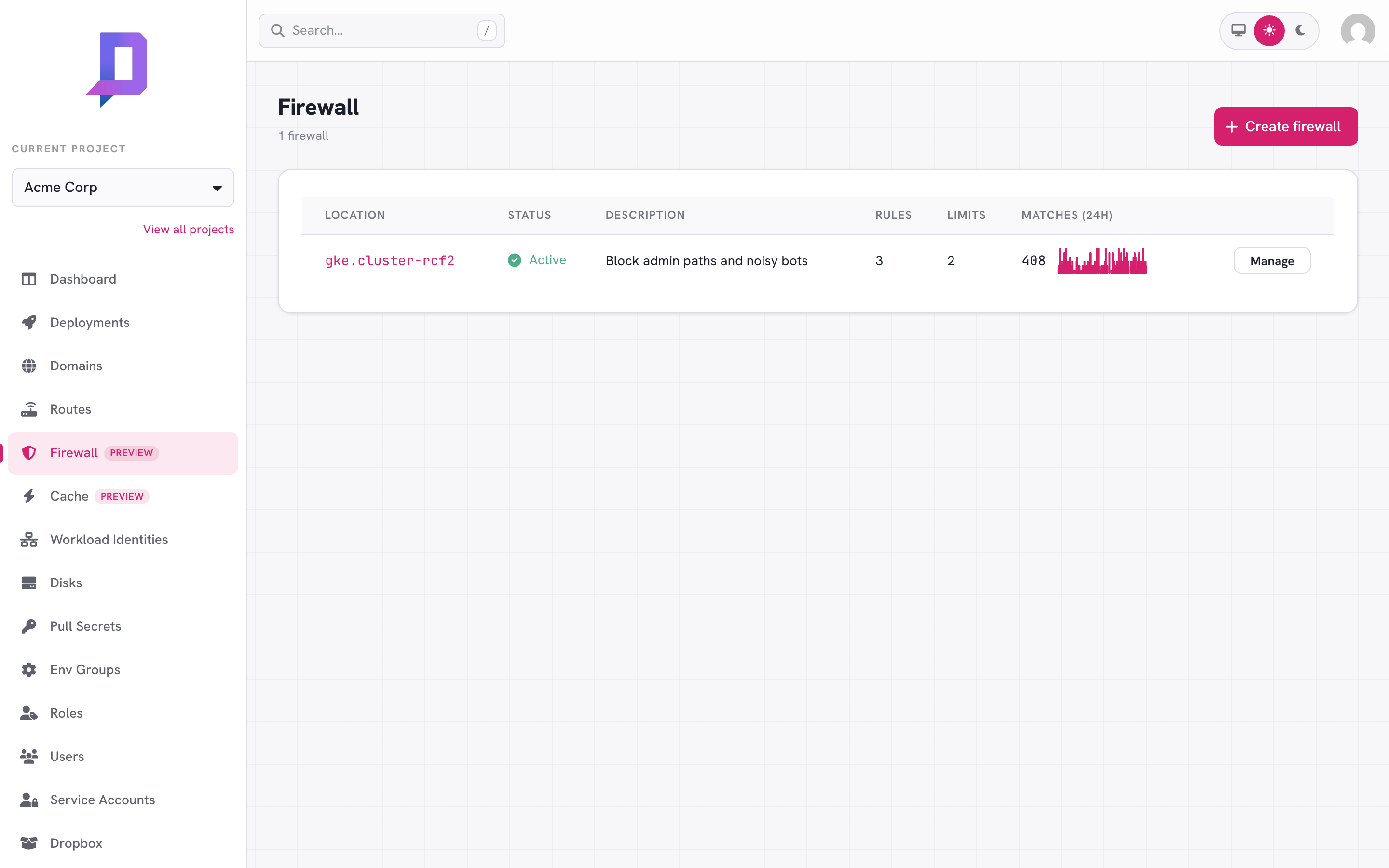

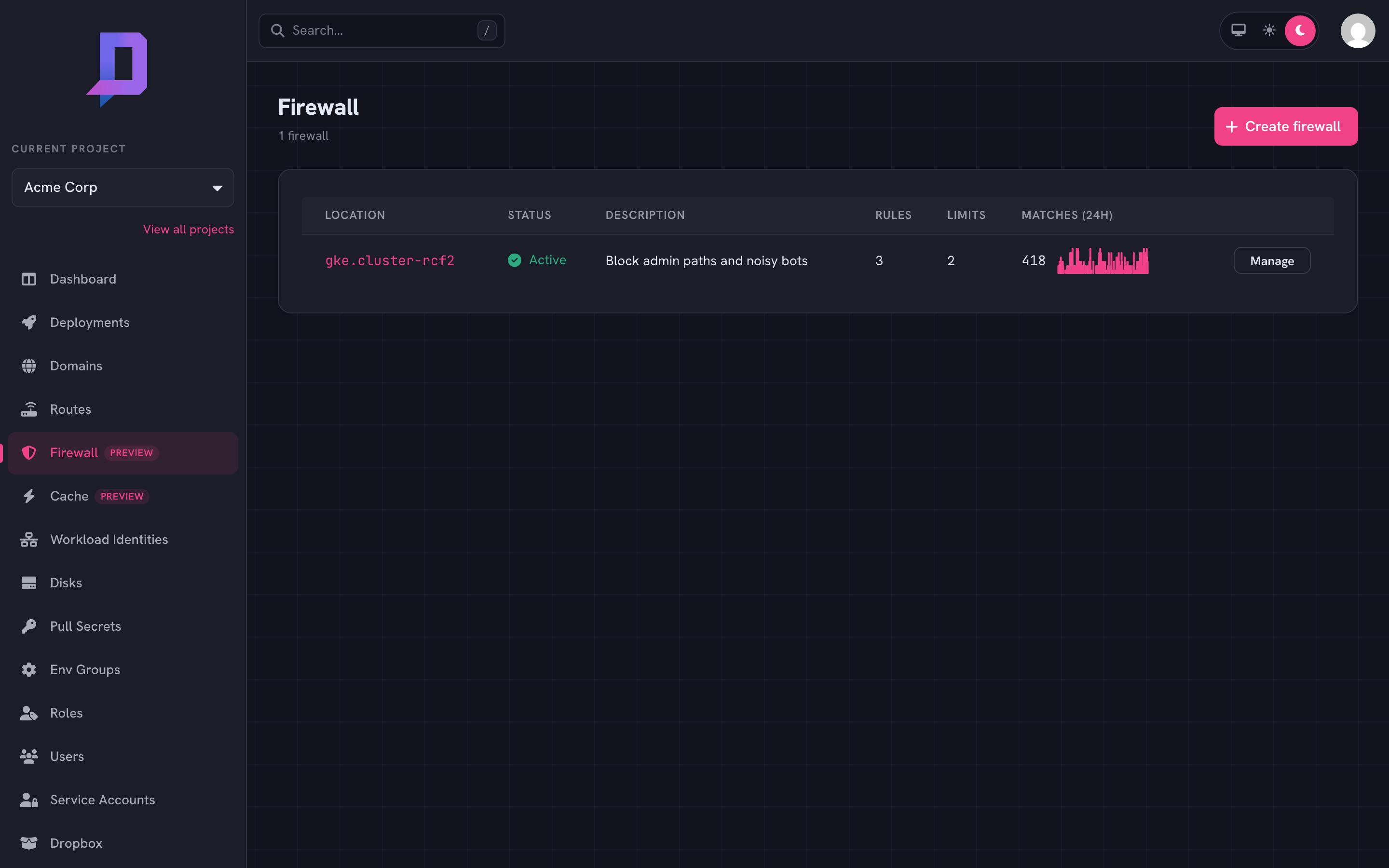

The Firewall tab lists every zone in the project (one per location), with its status, description, rule count, and a 24-hour match sparkline so you can see how busy each rule has been.

console.deploys.app/waf?project=acme

Click Manage to view, edit, and reorder the zone’s rules.

How rules work#

Rules evaluate in priority order — lowest priority number first. The first rule whose expression matches the request decides the outcome:

A request that doesn’t match any rule is forwarded normally.

{
  "id": "block-admin",
  "description": "Block external access to /admin",
  "expression": "request.path.startsWith('/admin')",
  "action": "block",
  "status": 403,
  "message": "Forbidden",
  "priority": 10
}

The expression language#

Rule expressions are small boolean expressions over the request. Common references:

• request.path — the URL path (string).
• request.method — GET, POST, …
• request.remote_ip — the client IP as seen by the gateway.
• request.headers['name'] — a header value (string), lowercased name.
• request.host — the request hostname.

Operators: ==, !=, &&, ||, !, plus the string helpers .startsWith(s), .endsWith(s), and .contains(s), and ipInCidr(ip, cidr) for network matching.

request.path.startsWith('/admin')
request.headers['user-agent'].contains('bot')
request.remote_ip == '203.0.113.7'
ipInCidr(request.remote_ip, '203.0.113.0/24')
request.path.endsWith('.php') && !request.headers['x-internal'].contains('yes')

One more is available on top of the engine’s own functions: ipInList(request.remote_ip, "list-name") matches against a named IP list — it’s a platform macro, expanded into ipInCidr checks before your rules reach the gateway.

Patterns#

Always allow your own egress IPs. Stick an allow rule with low priority at the top of the zone so good traffic short-circuits the rest of the rules.

priority 10 — allow — ipInList(request.remote_ip, "office-ips")
priority 50 — block — request.path.startsWith('/admin')
priority 90 — log   — request.headers['user-agent'].contains('bot')

Roll out new blocks safely. Add a rule as log first, watch the matches on the metrics page for a day, then flip it to block once you’ve confirmed it’s catching what you expect (and not what you don’t).

Test rules (dry run)#

Before saving a rule — or before trusting a whole zone — you can ask the API what the zone would do to a sample request. waf.test compiles your expressions with the same engine the gateway runs, evaluates them against a synthetic request you describe, and reports every rule’s match, the winning rule, and which rate limits the request would count against. Nothing is stored and nothing reaches the cluster; it only needs the read-only waf.get permission, and the zone doesn’t have to exist yet — testing a draft before the first waf.set is the point.

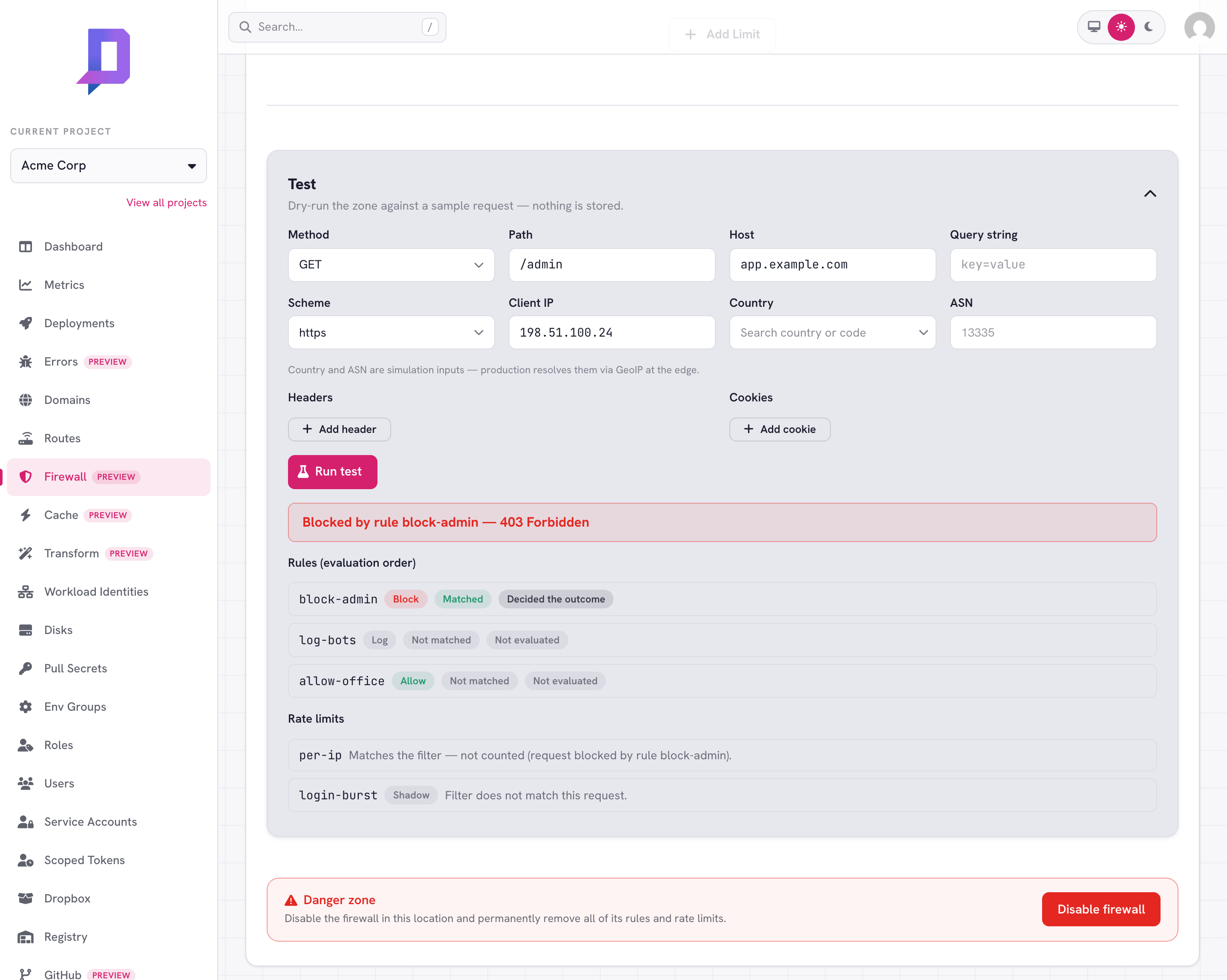

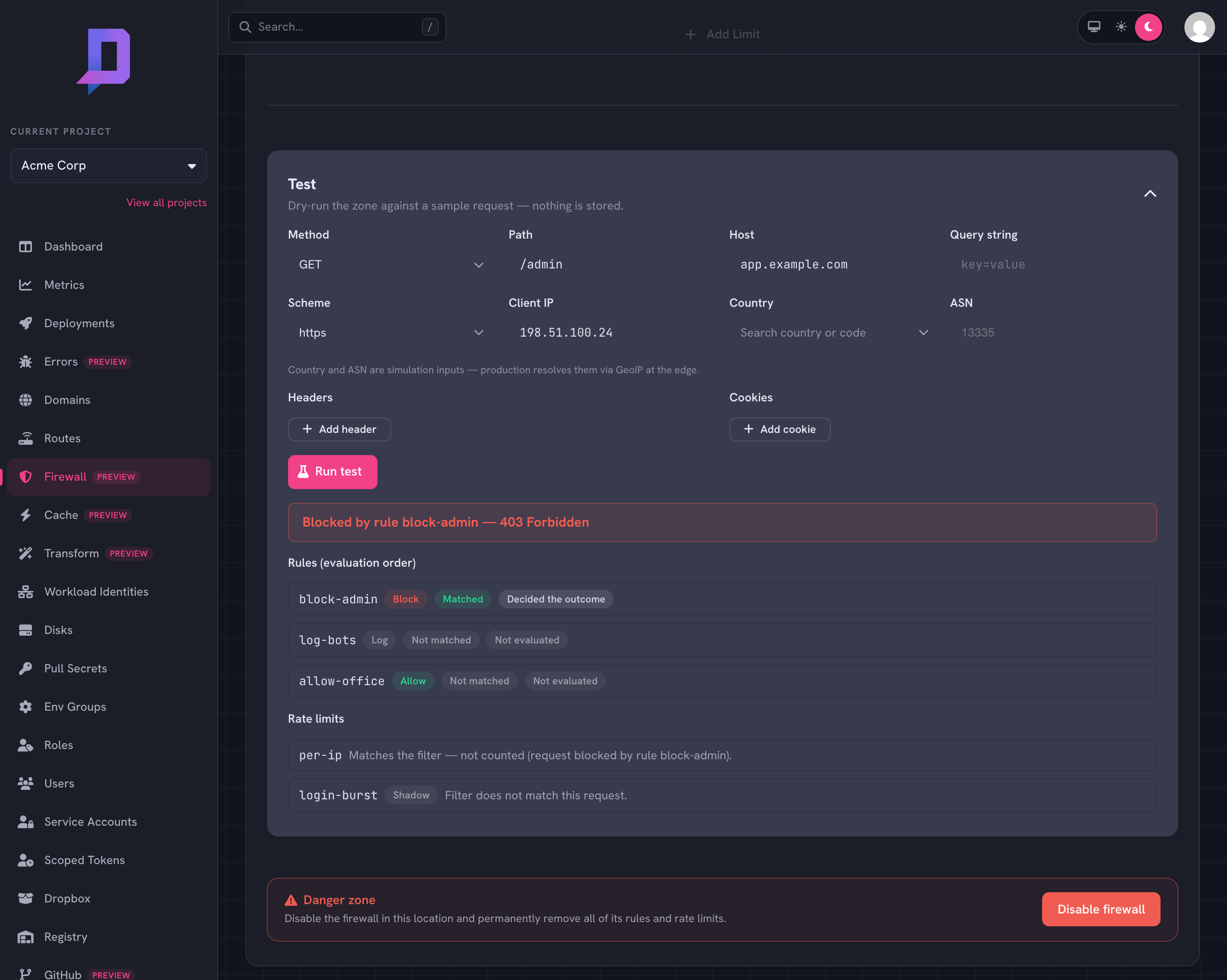

The console has a Test panel on the rule editor, the rate-limit editor, and the zone manage page.

console.deploys.app/waf/manage?project=acme

There are two ways to call it:

Send exactly one of the two. In expression mode the expression runs as a single log rule with id expression — and since log never terminates, the outcome is always pass; whether the expression matched is rules[0].matched.

curl https://api.deploys.app/waf.test \
  -H "Authorization: Bearer $DEPLOYS_TOKEN" \
  -d '{ "project": "acme", "location": "gke.cluster-rcf2",
        "expression": "request.country == \"TH\" && request.path.startsWith(\"/admin\")",
        "request": { "method": "GET", "path": "/admin",
                     "host": "app.example.com",
                     "ip": "203.0.113.7", "country": "TH" } }'

The sample request describes the synthetic request: method (default GET), path (required), query, host, scheme (default https), headers and cookies maps, ip, country, and asn.

The result reports:

Every rule is evaluated independently, so matched is reported even for rules after the winning allow/block; those come back with evaluated: false because the real engine short-circuits there. A rule that errors at runtime gets its error set and is skipped in the decision walk — the same fail-open behavior as production. A rule that fails to compile is likewise reported per-rule and skipped, but only in the dry run: production never runs a compile-broken rule at all, because waf.set rejects the save (that’s what valid: false tells you). Either way the rest of the zone keeps evaluating, so one broken expression doesn’t hide the results for everything else.

For each rate limit, filterMatched means the limit’s filter selects this request (always true for a limit with no filter), and counted means the request would actually be counted against the limit — a request blocked by a rule never reaches the rate limiter, so it burns no rate budget. Neither means the request would be limited: that depends on live counters, which a dry run can’t know.

Rate limiting#

Alongside the block/log/allow rules, a zone can carry rate limits — counters that reject (or just watch) traffic arriving faster than a threshold. Limits are independent of the rules: they’re evaluated for every request the zone covers, so a request that passes every rule can still be rejected by a limit.

A limit sorts requests into buckets and rejects a bucket once it exceeds rate requests per window. What defines a bucket is the key:

List several to bucket on the combination — ["ip", "host"] limits each IP per host. With no key the limit defaults to ["ip"].

Limits live on the same zone as the rules. Set them with waf.set, in a limits array next to rules — and, like the rules, waf.set replaces the whole zone, so send the full limits list every time:

"limits": [
  {
    "description": "100 req/min per IP",
    "key": ["ip"],
    "rate": 100,
    "window": "1m"
  },
  {
    "description": "Throttle login to slow credential stuffing",
    "key": ["ip"],
    "rate": 5,
    "window": "1m",
    "filter": "request.path == '/login' && request.method == 'POST'",
    "status": 429,
    "message": "Too many attempts — slow down."
  }
]

Each limit understands:

A zone holds up to 20 limits.

Size a limit in shadow mode first. Set "mode": "shadow" and the limit counts matches without rejecting anything. Watch the limited share on the metrics page for a day or two, confirm the threshold only catches abuse, then flip it to enforce. It’s the rate-limit equivalent of rolling out a rule as log before block.

Named IP lists#

Writing the same CIDRs into every rule gets old fast — and with the 2048-char expression cap, a block list of more than ~40 networks doesn’t fit in one rule at all. Named IP lists are reusable sets of IPs and CIDRs, defined once per project and referenced from any rule expression or limit filter in any of the project’s zones. Edit the list, and every zone that uses it is re-applied.

Typical uses: an office/VPN allowlist shared across every location, a botnet block list too big for an inline expression, or exempting your monitoring ranges from a rate limit.

Lists have their own permission family — wafList.list, wafList.get, wafList.set, wafList.delete (camelCase, unlike most permissions) — which an existing waf.* grant does not cover. Grant wafList.* alongside waf.* for roles that manage the firewall, or the lists page and the list picker stay permission-blocked.

Creating a list#

In the console, the IP lists button on the Firewall page opens the lists page — a table of the project’s lists with entry counts and the zones referencing each, plus create/edit and delete. The same operations via the CLI:

deploys wafList set \
  --project acme \
  --name office-ips \
  --entry 203.0.113.0/24 \
  --entry 198.51.100.7 \
  --entry 2001:db8::/48

Entries are IPv4/IPv6 addresses or CIDRs, mixed freely. set replaces the whole list (like waf.set replaces the whole zone), so send every entry each time. For longer lists, --entries-file ips.txt reads one entry per line (# comments are stripped), and -f list.yaml takes the full payload as YAML.

deploys wafList list --project acme
deploys wafList get --project acme --name office-ips
deploys wafList delete --project acme --name office-ips

Entries are normalized on save: CIDRs are masked to their network address (10.1.2.3/8 stores as 10.0.0.0/8) and IPv6 is compressed to canonical form. Duplicates after normalization are rejected.

Referencing a list#

Use ipInList(<field>, "<list-name>") anywhere a rule expression or limit filter goes. The list name must be double-quoted; negate with ! like any other boolean:

"rules": [
  {
    "description": "office allowlist",
    "expression": "ipInList(request.remote_ip, \"office-ips\")",
    "action": "allow"
  }
],
"limits": [
  {
    "description": "api limit",
    "key": ["ip"],
    "rate": 600,
    "window": "1m",
    "filter": "!ipInList(request.remote_ip, \"office-ips\")"
  }
]

In the console, the rule and limit builders offer in IP list / not in IP list operators with a picker over the project’s lists.

waf.set rejects an expression referencing a list that doesn’t exist, so create the list first.

How expansion works#

ipInList is a platform macro, not an engine function. Your zone stores exactly what you wrote — waf.get and the console round-trip the macro form — and the platform expands it into plain ipInCidr checks when it applies the zone to a location:

ipInList(request.remote_ip, "office-ips")
   ↓
(ipInCidr(request.remote_ip, "203.0.113.0/24") || ipInCidr(request.remote_ip, "198.51.100.7/32") || ipInCidr(request.remote_ip, "2001:db8::/48"))

Bare addresses expand as exact matches (/32 for IPv4, /128 for IPv6). An empty list never matches — ipInList over it is simply false — so a freshly created placeholder list is safe to reference from either an allow or a block rule.

Editing a list re-applies every zone that references it, in every location — watch the zones flip to Pending and back to Success on the Firewall page. A list edit that would push any referencing zone past the expansion caps (below) is rejected whole, naming the offending zone and rule, and nothing changes anywhere.

Caps#

The stored expression cap (2048 chars) applies to what you write — a macro reference is ~45 chars, so list size no longer pushes against it. The expanded caps apply to what the gateway runs, and they’re checked on both waf.set and wafList.set: whichever edit would exceed them is rejected with the rule or limit named by its description. In practice a full 1000-entry IPv4 list fits; IPv6-heavy lists hit the expression cap earlier.

Deleting a list#

Deleting a list that’s still referenced is refused, and the error names every referent — the location of each zone and the descriptions of the referencing rules and limits:

waf list "office-ips" is in use by the waf zone at gke.cluster-rcf2 (rules: "office allowlist"; limits: "api limit")

Remove or rewrite those rules first, then delete. There’s no rename — the name is the reference key — so renaming is delete + recreate, which the same guard keeps honest.

Metrics#

The Firewall metrics page plots matches per (rule, action) over a selectable window — 1h, 6h, 12h, 1d, 7d, 30d — so you can see which rules are hot and catch rule changes that suddenly start matching production traffic.

The same data is available via the API:

curl https://api.deploys.app/waf.metrics \
  -H "Authorization: Bearer $DEPLOYS_TOKEN" \
  -d '{ "project": "acme", "location": "gke.cluster-rcf2",
        "timeRange": "1d" }'

Rate limits have their own series via waf.limitMetrics, returned per (limit, result) where result is allowed or limited. Charting the limited share — limited / (allowed + limited) — is how you size a shadow limit before enforcing it.

curl https://api.deploys.app/waf.limitMetrics \
  -H "Authorization: Bearer $DEPLOYS_TOKEN" \
  -d '{ "project": "acme", "location": "gke.cluster-rcf2",
        "timeRange": "1d" }'
